Cost‑Aware Tracing: Sampling Strategies That Preserve Debuggability
Distributed tracing is essential for understanding how requests move through microservices, but it can quickly become expensive and resource-intensive. For instance, a system handling 10 million daily requests with 8 spans per trace generates 2.4 billion spans monthly – costing over $50,000 per month just for ingestion. Sampling is the key to balancing cost and debugging needs by collecting only a subset of traces while retaining critical data.
Key Takeaways:
- Why Sampling Matters: Tracing every request is impractical due to high costs and latency. Sampling reduces data volume while maintaining visibility into system behavior.
- Types of Sampling:
- Head-Based Sampling: Decides at the start of a trace; simple but may miss rare errors.
- Tail-Based Sampling: Decides after the trace is complete; better for debugging rare issues but requires more resources.
- Dynamic Sampling: Adjusts rates in real-time based on system conditions, ideal for fluctuating workloads.
- Cost Savings: Sampling can reduce tracing costs by 50-90% while preserving data needed for debugging.
- Implementation Tips: Combine head and tail sampling for efficiency, and use dynamic adjustments to handle traffic spikes or incidents.
Sampling ensures you can debug issues within minutes without overspending on storage or processing. By layering strategies, such as head-based sampling for routine traffic and tail-based for errors, you can cut costs significantly while maintaining system observability.
Tail sampling vs. head sampling in distributed tracing
sbb-itb-f9e5962
How Sampling Works in Distributed Tracing
Sampling involves selecting a representative subset of traces to record, rather than capturing every single request. The idea is simple: collect enough data to understand system behavior without overwhelming your infrastructure. It’s similar to election polling – you don’t need to survey everyone to predict the outcome. A well-chosen sample of 1,000 voters can represent millions accurately.
The key is ensuring that the sample reflects the overall system behavior, even at just 1%. This statistical approach makes sampling a practical solution for observability.
There are three main types of sampling:
- Head-based sampling: Decisions are made at the entry point (root span) before the full trace is executed. This decision is then passed along to other services using context headers.
- Tail-based sampling: Decisions are delayed until the entire trace is available. This allows filtering based on outcomes like errors or slow performance.
- Adaptive sampling: Sampling rates are adjusted dynamically in real time, based on factors like system load, traffic patterns, or specific performance signals.
Why You Can’t Trace Every Request
Recording every trace in high-traffic systems quickly becomes impractical. For example, a microservices application processing 10,000 requests per second could generate hundreds of thousands of spans per second. Most of these traces are routine and repetitive, offering little new insight. Collecting all of them only adds unnecessary costs.
The numbers are staggering. A system handling 100,000 requests per second produces 8.64 billion traces daily, requiring about 8.6 TB of uncompressed storage. This can cost over $50,000 per month. Beyond storage, there’s the added burden on network bandwidth, CPU processing, and memory for buffering. Worse, capturing every request introduces latency, which can degrade user experience in systems with complex, multi-layered interactions.
These limitations highlight why sampling is essential – it helps manage costs while still maintaining meaningful observability.
The Two Goals: Lower Costs and Maintain Debugging
Given these challenges, sampling must achieve two main goals: reducing infrastructure costs while ensuring the ability to troubleshoot production issues. The risk of blind spots is real – random or overly aggressive sampling might miss rare errors, latency anomalies, or critical transactions.
"The question is not whether to sample, but how to sample intelligently." – Nawaz Dhandala, Author, OneUptime
A good sampling strategy focuses on "interesting" traces. This means capturing 100% of errors, slow requests, and critical business flows, while keeping only a small sample of routine traffic. If the sampling strategy is too noisy or misses important traces, developers may lose confidence in the tracing platform, often reverting to logs – a poor use of the observability stack.
The benefits of smart sampling are clear. Probabilistic sampling, for instance, can cut trace costs by 50% to 90% while maintaining statistical accuracy. For a system handling 10 million daily requests with an average of 8 spans per trace, 100% sampling costs about $480 per month. By reducing the sample rate to 1%, costs drop to just $4.80 per month.
3 Main Sampling Strategies

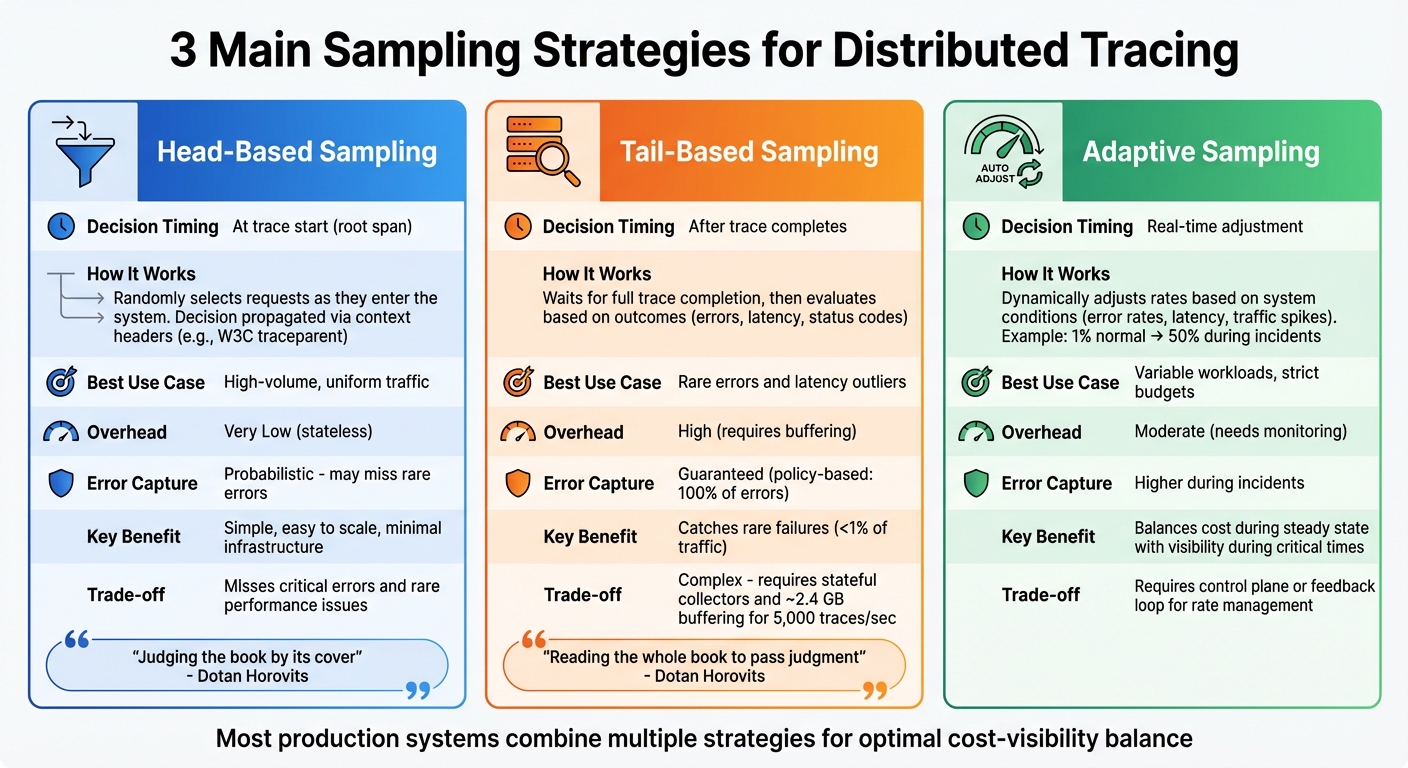

Comparison of Three Distributed Tracing Sampling Strategies
Choosing the right sampling strategy often comes down to balancing cost, complexity, and how much visibility you need for debugging. Let’s break down three key approaches and how they work, so you can decide which one fits your system best.
Head‐Based Sampling: Filter at Entry Point
If you’re looking for a low-overhead option, head‐based sampling might be the way to go.
This method picks requests randomly as soon as they enter your system, making the decision at the root span. The choice – whether to sample or not – then gets passed along to all downstream services using context headers like the W3C traceparent header. When the root span is sampled, the entire trace is recorded, ensuring completeness.
The big advantage here is simplicity. You set a sampling rate (say, 10%), and the system randomly selects that percentage of incoming requests. It’s stateless, easy to scale, and doesn’t require much infrastructure. But there’s a catch: because the decision happens before processing the request, you might miss critical errors or rare performance issues. For example, with a 10% sampling rate, most rare errors will slip through. This approach works best in high-traffic systems where errors happen frequently enough to be caught.
Tail‐Based Sampling: Decide After Seeing Full Context
Need to catch those rare, elusive errors? Tail‐based sampling might be your best bet.
Here, the system waits until a trace is fully completed before deciding whether to keep it. This allows you to evaluate the entire context – status codes, latency, error messages – before making a decision. For example, you could configure the system to keep 100% of error traces and slow requests, while sampling only 5% of fast, successful ones.
Tail‐based sampling offers unmatched visibility for debugging, especially in systems where failures are rare, affecting less than 1% of traffic. The trade-off? Complexity. This method requires stateful collectors to buffer spans until the trace is complete. For instance, a system handling 5,000 traces per second with a 30-second decision window would need about 2.4 GB of span buffering. To ensure all trace data is available, the decision_wait parameter should be set to 2–3 times the p99 latency. Tail‐based sampling is ideal for environments where every failure needs thorough analysis.
Adaptive Sampling: Adjust Rates Automatically
When your workload varies, adaptive sampling helps strike a balance between cost and debugging needs.
This approach dynamically adjusts sampling rates based on system conditions. For instance, it might start with a low rate (1%) during normal operation but ramp up to 50% or more when error rates spike or latency increases. This ensures you capture more detailed data during critical times without overspending during steady states. Techniques like diversity sampling can also ensure at least one trace per unique fingerprint is captured every 15 minutes.
Adaptive sampling typically involves a control plane or feedback loop to monitor system performance and tweak rates as needed. While it adds some operational complexity, it’s a great choice for systems with fluctuating workloads and tight budgets.
| Strategy | Decision Timing | Best Use Case | Overhead | Error Capture |
|---|---|---|---|---|
| Head‐Based | At trace start | High‐volume, uniform traffic | Very low (stateless) | Probabilistic (may miss rare errors) |
| Tail‐Based | After trace completes | Rare errors and latency outliers | High (requires buffering) | Guaranteed (policy based) |
| Adaptive | Real‐time adjustment | Variable workloads, strict budgets | Moderate (needs monitoring) | Higher during incidents |
"Head-Based Sampling would be judging the book by its cover (or the first page). Swift but shallow judgment… Tail-Based Sampling would be reading the whole book to the end to pass the judgment." – Dotan Horovits, Logz.io
Combining Multiple Sampling Strategies
Most production systems require more than one sampling method to strike the right balance between cost and visibility. The key is layering these strategies so that each one offsets the other’s limitations.
Using Head-Based and Tail-Based Sampling Together
One effective approach is a two-stage filtering process. Here’s how it works: head-based sampling occurs at the SDK level, cutting down the number of traces before they leave your application. Then, tail-based sampling at the collector applies policies to decide which traces to keep.
Here’s the process in action: the SDK applies a probabilistic sampling rate, typically between 25% and 50%, to reduce bandwidth usage and ease the load on the collector. This rate needs to be high enough to ensure the collector gets sufficient data, particularly for errors and slow requests. If the head sampling rate is set too low – like 1% – it risks filtering out critical traces before they even reach the tail sampler.
Once traces make it to the collector, tail-based sampling policies take over. For instance, you could configure the system to retain 100% of error traces and traces taking longer than 2,000ms, while sampling only 20% of normal traffic. Combining a 25% head sampling rate with a 20% tail rate results in an effective retention of just 5% for routine traces, while ensuring error traces are retained at the full 25%.
Another critical piece is using a ParentBasedSampler in your SDK. This ensures all child spans follow the root span’s sampling decision, preventing fragmented traces. A SaaS platform used this method in February 2026 to handle 200 million spans daily. By retaining 100% of errors and slow traces, 25% of key services (like their API gateway), and 10% of everything else, they reduced daily ingestion to 36 million spans. This cut their monthly costs by 82%, from $20,000 to $3,600.
| Trace Type | Head Sample Rate | Tail Sample Rate | Effective Retention Rate |
|---|---|---|---|
| Errors | 25% | 100% | 25% of all errors |
| Slow Requests | 25% | 100% | 25% of all slow requests |
| Normal Traffic | 25% | 20% | 5% of normal traffic |
This combined strategy creates a strong foundation for incorporating more dynamic adjustments through adaptive sampling.
Adding Adaptive Sampling for Real-Time Response
Building on the head and tail sampling setup, adaptive sampling adds a layer of real-time control. It monitors factors like error rates, traffic spikes, and budget usage to adjust sampling rates dynamically.
This approach shines during unpredictable workloads. For example, when error rates surge, adaptive sampling can increase the head sampling rate from 25% to 50% (or higher), sending more data to the tail sampler for evaluation. On the flip side, during sudden traffic spikes, it can lower rates to prevent backend overload and manage costs.
However, adaptive sampling introduces complexity. It typically requires a control plane or feedback loop to manage rate adjustments across both the SDK and collector layers. For systems with fluctuating traffic or tight budgets, this three-layer strategy – head sampling for bandwidth control, tail sampling for retention, and adaptive sampling for real-time tuning – offers a practical balance between cost management and effective debugging.
Deploying and Tuning Your Sampling Strategy
Analyze Traffic to Set Initial Sampling Rates
Start by measuring your baseline requests per second (RPS) to determine your initial sampling rates. For systems handling fewer than 100 RPS, trace all requests (100%). If your traffic is around 1,000 RPS, sample between 1% and 5%. For systems exceeding 10,000 RPS, reduce the sampling rate further to 0.1%–1% while incorporating additional error sampling.
Your team’s capacity also plays a role in setting targets. For small teams managing fewer than 10 services, aim for 50 to 100 traces per second. Medium-sized teams handling 10 to 50 services can manage 200 to 500 traces per second. To calculate the sampling rate, use this formula: divide your desired traces per second by your current RPS, then multiply by 100. For example, if your system processes 10,000 RPS and you want 100 traces per second, your starting sampling rate should be 1%.
To avoid unnecessary noise, exclude health checks, internal probes, and static asset requests from tracing. These often make up 30% to 50% of trace volume without adding much debugging value.
Monitor Performance and Adjust Over Time
After setting your initial sampling rates, keep an eye on performance and fine-tune as traffic patterns evolve. Fixed rates may work well for systems around 1,000 RPS, but at 10,000 RPS, the costs can escalate. In such cases, switch to target-based sampling to maintain a consistent trace volume.
Consider deploying a dynamic controller, either as a sidecar or a scheduled job, to monitor metrics from your collector. Look at otelcol_receiver_accepted_spans and otelcol_exporter_sent_spans to ensure the reduction ratio aligns with your expectations. If the gap between received and exported spans is too narrow, your sampling may not be aggressive enough. Conversely, if the gap is too wide, you might miss important data.
Also, verify that the sampled error rates reflect actual error rates, maintaining a ratio between 0.95 and 1.05. In Kubernetes setups, use ConfigMaps to manage sampling rates. This allows platform teams to adjust rates during incidents or traffic spikes without needing to redeploy code.
Account for Ingestion and Processing Costs
Sampling isn’t just about visibility – it’s also about managing costs. Typically, ingestion, processing, and storage costs are distributed as 30%, 20%, and 50%, respectively. Using head sampling at the SDK level can help by preventing the creation of spans altogether, which saves CPU, memory, and network resources. On the other hand, tail sampling requires more memory because it buffers complete traces while the collector processes them.
Keep an eye on the otelcol_processor_tail_sampling_sampling_trace_dropped_too_early metric from your collector to ensure your memory buffer is sufficient for the current traffic load. If traces are being dropped too soon, increase the num_traces setting in your tail sampling configuration. To balance performance and cost, set a head sampling rate between 25% and 50%, and then use tail sampling to focus on errors and slow requests.
Conclusion
When managing high-traffic systems, sampling becomes a critical tool to keep observability costs under control. Without it, tracing every single request at a rate of 100,000 requests per second could generate around 8.6 TB of data daily, costing upwards of $50,000 per month. A thoughtfully implemented sampling strategy can slash these expenses by 50% to 90%, while still preserving the most important traces.
Each sampling method comes with its own strengths and weaknesses. Head-based sampling is lightweight and efficient but lacks awareness of outcomes, which might lead to missing critical errors. On the other hand, tail-based sampling excels at capturing errors and slow requests by analyzing outcomes, though it demands substantial memory for buffering at the collection stage. Adaptive sampling takes it a step further, dynamically adjusting rates based on traffic fluctuations and budget constraints, especially during incidents. By combining these strategies, you can strike the right balance between cost savings and effective debugging.
"The goal is to have enough trace data to debug any production issue within minutes, without paying for traces you will never look at."
– Nawaz Dhandala, Author
For example, a SaaS platform recently implemented tiered sampling and managed to reduce spans, cutting their monthly tracing expenses by over 80%.
To maintain this balance, ongoing monitoring and regular adjustments are essential. This continuous fine-tuning ensures that your tracing efforts remain efficient and provide the diagnostic insights you need without overspending.
FAQs
What sampling rate should I start with for my traffic?
A practical starting point for sampling is a rate between 1% and 5%. This range strikes a balance between keeping costs manageable and maintaining enough visibility to gather useful data for debugging. If you’re aiming for predictable expenses, consistent probability sampling is a solid choice. On the other hand, in dynamic environments, remote sampling offers flexibility, enabling you to tweak the sampling rate as situations evolve. Begin with a lower rate and adjust it as necessary, depending on your debugging requirements or the severity of any critical incidents.
How do I keep rare errors from being missed by sampling?
To catch those rare and elusive errors during sampling, it’s smart to use strategies that focus on error-prone traces. Tail-based sampling is one option – it keeps all errors and slow traces, but you’ll need to configure it carefully to avoid overloading your system’s memory.
Another approach is adaptive sampling, which tweaks sampling rates automatically when anomalies pop up. This ensures you’re capturing the right data when it matters most. Lastly, probabilistic or consistent probability sampling helps you spot rare issues without breaking the bank, offering a balance between error detection and cost control. These methods work together to keep error detection sharp while managing resources effectively.
What metrics indicate my sampling is too aggressive?
Overly aggressive sampling can lead to several issues, such as reduced trace coverage, missing important error or performance patterns, and inadequate representation of system behavior. These problems can significantly impact visibility into critical transactions and limit your ability to gather meaningful diagnostic insights. The result? Debugging becomes much more challenging.
